China North Technology Co.,Ltd
CNT-IP3606
Product name : CNT-IP3606

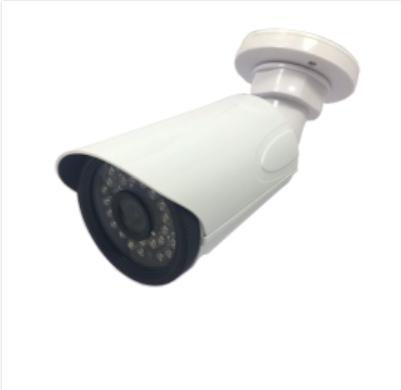

Model No. : 2 MP 1080P OUTDOOR CAMERA
Products Category: > IP CAMERA(H265+/H265/H264) > H265 IP CAMERA
| HD IP Camera | |
| Image Sensor | IMX291 |
| Main processor | HI3516C |
| Image Resolution | 2MP/1080P, 1920*1080 |
| Effective Pixels | 1920*1080 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec |
| Sync System | Internal |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive Scan |
| Video Output | Network |
| Day/Night | Color/ B&W (IR-CUT ) |
| Compression | H.264 |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, BLC, |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| WDR | DWDR |
| Recording Mode | NVR/NAS/CMS/Web |
| Language | Chinese Simplified, English, |
| Lens | |
| Focus Length | 3.6MMFixed lens, Option lens: 3.6mm. 6mm,12mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 3M Pixels |
| Auto Iris Support | NO |
| Night Vision | |
| Infrared LED | 36PCS IR LED |
| Infrared Distance | 30M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4, HTTP, TCP/IP, FTP, NTP, RTSP, UDP, SMTP, DNS, DDNS |
| ONVIF | Support ONVIF 2.4 |
| P2P | YES, Support QR Code |
| POE | Optional, Support IEEE 802.3af |
| WIFI | N/A |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream | 1920*1080 |
| Sub Stream | 352*288 |
| IE Brower | IE6-11 |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| General | |
| Housing | Weatherproof , IP66 |
| Anti-cut Bracket | YES, |
| IR Cut Filter | YES, |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 1000mA |
