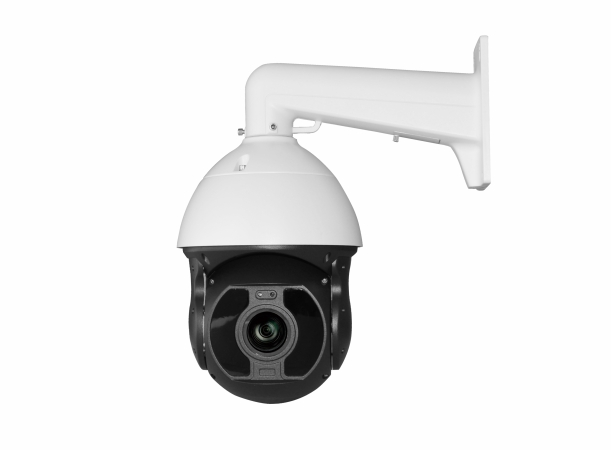

CNT-SD4K22XIVS
Product name : CNT-SD4K22XIVS
Model No. : 4K 22X IVS IP SPEED DOME
Products Category: > IP CAMERA(H265+/H265/H264) > PTZ SPEED DOME
Starlight illumination 4K HD 22X IP Analysis Smart Laser IR Speed Dome Camera,1/1.7" progressive scan, 12megapixel, Sony IMX226 CMOS ,22X optical zoom,Main Stream: 12MP (4000×3000): Max. 20 fps; 4K (3840×2160): Max. 30 fps
1.1/1.7" progressive scan, 12megapixel, Sony IMX226 CMOS
2.22X optical zoom, auto focus f= 6.5~ 143 mm Angle of View (H) 56.7° (wide) ~ 3.07° (tele)
3.12 Megapixel image
4.True Day/Night, 3D DNR, Super WDR
5.Backlight compensation, and auto gain control (AGC)
6.Electronic Image Stabilization
Network Features:
1.Main Stream: 12MP (4000×3000): Max. 20 fps; 4K (3840×2160): Max. 30 fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4 , API
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Smart Analysis function : Behavior Detection Intrusion, crossing line, motion detection , Face detection, People counting,Audio detection
2. Imported array smart Laser IR , auto adjust zoom according to different distance
3. IR range 300M
4. Highest ESD protection against lightning and power surges.
5. 360 degree continued rotation, manual pan speed 0.05~240°/S, manual tilt speed 0.05~120°/S, preset speed 300°/S.
Mode | Name and Description | Starlight illumination 4K HD 22X IP Analysis Smart Laser IR Speed Dome Camera |
Camera | Image Sensor | 1/1.7" progressive scan, Sony IMX226 CMOS |
Effective Pixels | 12megapixel, | |
Min. Illumination | Color：Colour: 0.06 lux (F1.5,AGC ON) 0 lux with IR | |
Zoom | 22X f= 6.5~ 143 mm Angle of View (H) 56.7° (wide) ~ 3.07° (tele) | |
Day/Night | Day / Night / External control（IR Cut Filter） | |
SNR | ≥55dB(AGC OFF) | |
WDR | Digital WDR，≥120dB | |
AGC | Auto / Manual | |
White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
Digital noise Reduction | DNR,3DNR | |
Shutter speed | 1/6 s ~ 1/100000 s | |
Network | Video Compression | H.265 Main Profile/H.264 Main Profile/M-JPEG |
Streams | Triple | |
Frame Rate | Main stream: | |
12MP (4000×3000): Max. 20 fps; 4K (3840×2160): Max. 30 fps | ||
Sub-stream: | ||
1080P (1920×1080):Max.60 fps;720P (1280×720):Max.30 fps;D1 (720×576):Max.15 fps | ||
MJPEG: | ||
Bitrate | CBR/VBR, bitrate：32Kbps~10Mbps variable | |
Audio Compression | G711，PCM | |
P2P | Android、IOS | |
Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x | |
Motion detect | Support | |
Privacy Zone Masking | Support | |
Onvif | Onvif 2.4 | |
Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
Mini SD Card | Up to128GB(Optional) | |
IR | Luminary | smart Array laser Φ20 10 pcs pcs Laser |
Night vision distance | 300M | |
Lamp control | Auto, Manual, by Zoom | |
Dome Features | CPU Type | 32 bit ARM CPU |
Address | 0~255(soft address and hard address) | |
Pan Range | 360° continued rotation | |
Tilt Range | -15°～90°（auto flip） | |
Manual pan speed | 0.05~240º/S | |
Manual tilt speed | 0.05~120°/S | |
Preset speed | 300°/S | |
Actual preset Accuracy | ±0.10° | |
Preset points | 256 | |
Other function | 4 Tour, Intelligent Three dimensional Scan, Manual continued Auto Scan | |
Intelligent power | automatic save functions setting ,automatic wake up tour function | |
General | Work temperature | External–20℃~60℃ |
Work Humidity | 0%~90% (Non condensing) | |
Power | DC24V/25A±10%; | |
Consumption | < 50W |
