CNTTHERMAL651

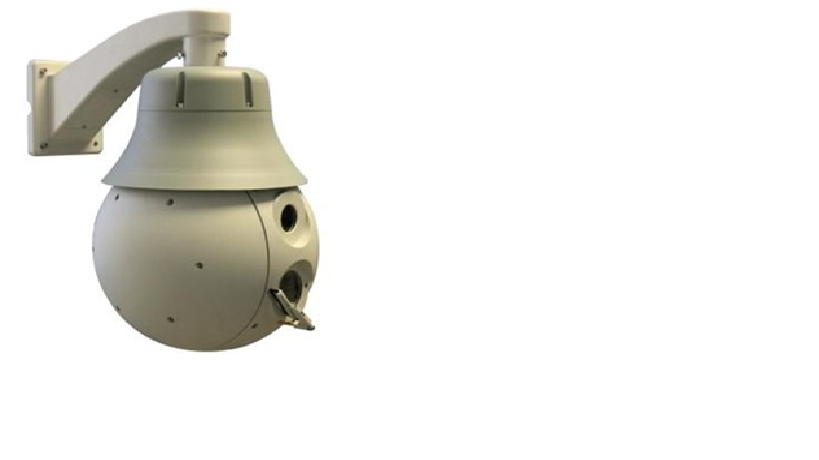

Product name : CNTTHERMAL651
Model No. : THERMAL CAMERA LONG DISTANCE
Products Category: > LONG DISTANCE (LASER&THERMAL CAMERA)
THERMAL CAMERA SPECIFICATION:
Thermal CAMERA:
Distance | Object | Human（1.8m×0.5m） | Vehicle（2.3m×2.3m） |
Detect distance | 1400m | 4000m | |
Recognize | 350m | 1000m | |
Identify | 170m | 500m | |
Thermal imaging camera | Detector Type | VOX Uncooled FPA, 640x512 pixels | |
Spectrum Range | 7～14μm | ||
Lens | 50mm | ||
FOV | 12.4°×9.9° | ||
IFOV | 0.34mrad | ||
NETD | 50mK@F1.0, 300K | ||
Electronic Magnification | 2×，4X | ||
Image Process | AGC, DDE, Pseudo Color | ||
Video Output | PAL | ||
Power Supply | 12VDC | ||
Power Consumption | Normal 5W，peak at 30W | ||
Assumptions: 50% probability of achieving objective at the specified distance given a 2-degree temperature difference and 0.85/km atmospheric attenuation factor. Actual range may vary depending on camera setup, environmental conditions, user experience, and type of monitor or display used. | |||
