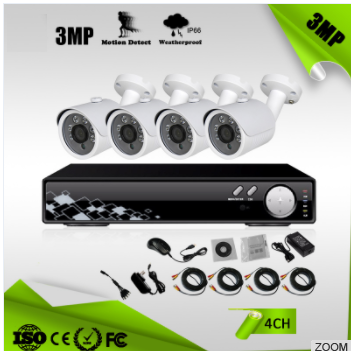

CNTAHDKIT505

Delivery Time

Shipped in 7~10 working days after payment

System

Main processor

Huawei Hi 3521A

Video

video compression

H.264(High Profile);

Encode

8*3MP*10fps/4*4MP*8fps

Decode

4*3MP*10fps/4*4MP*8fps

Multi-mode input

Pure Analog:8*4MPMixed:4*4MP(analog) +4*4MP(network); Pure   Network:4*5MP

Audio

Audio compression

G.711A

Intercom

support

Recording and Playback

Record mode

Manual>alarm>motion detection>timing

Playback Channels

4 (pure local input mode)

Storage and backup

Space occupation

1080P*12fps:20~30G/ day*channel

4MP*8fps:25~35G/ day*channel

audio:691.2M/ day*channel

Backup mode

Network backup,USB HDD, USB writer,SATA writer

Interface

Video input

8 BNC

Video output

1ch VGA,1ch HDMI

Audio input

4ch RCA

Audio output

1ch RCA

Alarm input

NO

Alarm output

NO

Network interface

RJ45 10M/100M Adaptive Ethernet port

PTZ control

RS485; support multiple PTZ protocols

USB

2 USB ports

Hard disk

1SATA(Each maximum support 4T )

Wireless

3G,WIFI(expand via USB)

Other

Power

12V/2A

dimension

255mm(length)* 228mm(width)* 45mm(height)

Main Chipset

NVP2470

Sensor

AR0330

SIGNAL

PAL / NTSC

Lens

MTV 3.6mm HD Fixed Lens

Video Output

1 Channel HD-TVI,, HD-AHD,

Effective Pixels

2048(H)*1536(V)

Min. Illumination

0.01Lux F1.2

Shutter

4/25s~1/45,000s

BLC

optional

Infrared LED

6X6PCS

Infrared Distance

25M

OSD

Supported

 Day/Night

Auto(ICR) / Color / B/W

Transmission Distance

Over 500m via 75-3 coaxial cable

Power Supply

DC 12V/±10% ,2000mA

Working Environment

-20℃   --- 50℃

Dimension (mm)

69 x 94(H)

NW

0.5KG
