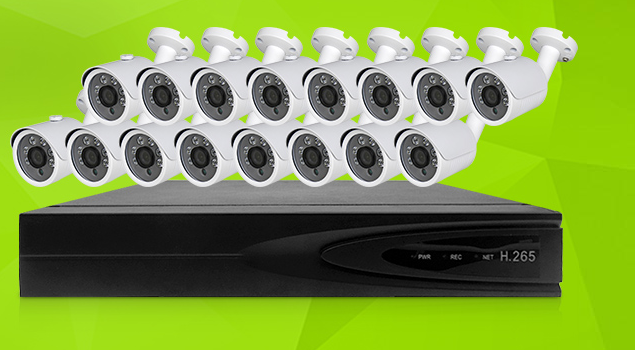

CNTAHDKIT306

System

Main   processor

Industrial-grade   embedded HiSilicon CPU

Operating   system

embedded   Linux

System   resources

Simultaneously   multi-channel real-time recording, playback, network operation, USB backup

Interface

Operator   interface

support   16-bit true color graphical menu interface and mouse operation

Preview

1/4/8/16   split screen

Video

Codec

H.264(High Profile)

Monitor   quality

VGA;HDMI:HD

Playback   quality

TVI,CVI,AHD-1080N

Encode   ability

16*TVI,CVI,AHD-1080N

Decode   ability

4*TVI,CVI,AHD-1080N

Multi-mode
  input

analog:16*TVI,CVI,AHD-1080N;

hybrid:12*TVI,CVI,AHD-1080N(analog)+4*720P(network)

Network only:8*720P;

Motion   Detection

Each   screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity   can be set (Limited local channel)

Audio   compression

G.711A

Intercom

support

Record   & playback

Record   mode

manual>alarm>motion   detection>timing

Local   Playback

4ch(local   input mode)

Search   mode

Search   by time, calendar, event, channel

Storage   & backup

Video   storage

HDD,   network

Backup   mode

Network,   USB hard disk, USB burner, SATA burner

External   Interface

Video   input

16ch   BNC

Video   output

1ch   VGA, 1ch HDMI

Audio   input

4CH RCA

Audio   output

1CH   RCA

Alarm   input

0(   Can be extended to 4ch)

Alarm   output

0(   Can be extended to 1ch)

Network   interface

RJ45   10M/100M self-adaption

PTZ   control

1*RS485,   Support kinds of PTZ protocols

USB

2*   USB 2.0 ports

HDD

1*SATA   ports (Max 6TB/per)

Wireless

3G,   WIFI (extend via USB)

General

Power   supply

12V/2A

Power   Consumption

<15W   (without HDD)

Temperature

0℃—+55℃

Humidity

10%—90%

Working   environment

86kpa—106kpa

Pick up Element

1/3" Aptina

Effective Picture Elements (H×V)

PAL/NTSC : 1280*960

Horizontal Resolution

1280H

Scanning System

2:1 interface

Synchronous System

Internal, Negative sync

Auto Electronic Shutter

1/50(1/60)S-1/100,000S

Gama Characteristic

0.45

IR Distance

25Meters (with 6X6PCS Infrared LED)

IR Status

Under 10Lux by CDS

IR Power On

CDS AUTO Control

Video Output

1Vpp, 75Ω

Auto Gain Control

Auto

Power/Current

DC12V/2000mA ±10%

Lens

MTV 3.6mm HD Fixed Lens

Dimension (mm)

69 x 94(H)

Storage Temperature

-30~+60℃    RH95% MAX

Operating Temperature

-10~+60℃    RH95% MAX

NW

 0.5kg
