CNT-AFA2003
· Sensor: CMOS
· Technology: Infrared
· Special Features: Waterproof / Weatherproof
· Resolution: 1920*1080P
· Image Sensor: 1/2.7" CMOS Sony 322
· DSP: NVP2440H
· IR Distance: 30Meters
· Certificate: CE/FCC/ROHS/ISO9001
· Weatherproof: IP66
· Warranty: 2 Years
· Camera type: AHD Analog Camera
· Lens: 3.6mm Fixed Lens
· Product Description

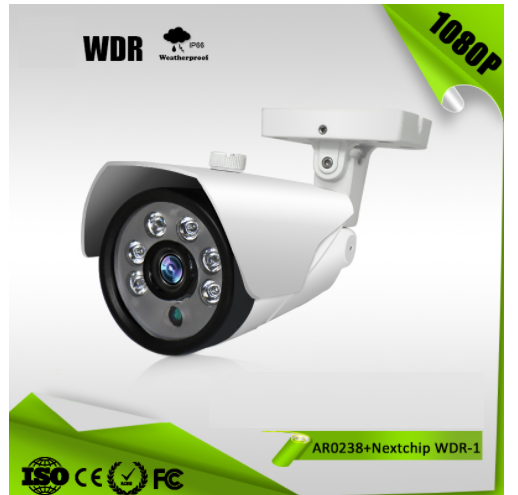

· 3X auto zoom 1080P 2MP 30m IR distance IP66 AHD security camera company oyesee
·
Model | OAHD200S3X-MBPE30 |
Main Chipset | NVP2440H |
sensor | Sony 322 |
Effective Picture Elements (H×V) | PAL/NTSC :1920*1080 |
Horizontal Resolution | 1920H |
Scanning System | 2:1 interface |
Synchronous System | Internal, Negative sync |
Auto Electronic Shutter | 1/50(1/60)S-1/100,000S |
Gama Characteristic | 0.45 |
IR Distance | 30Meters (with 8X6pcs Infrared LED) |
IR Status | Under 10Lux by CDS |
IR Power On | CDS AUTO Control |
Video Output | 1Vpp, 75Ω |
Auto Gain Control | Auto |
Power/Current | DC12V/2000mA ±10% |
Lens | Board Len 3.6mm/F2.0 |
Dimension (mm) | 190(W)x78(H)x78(D)mm |
Storage Temperature | -30~+60℃ RH95% MAX |
Operating Temperature | -10~+60℃ RH95% MAX |
NW | 0.8kg |
