CNT-AHD6663
Product name : CNT-AHD6663
Model No. : 1080P 2MP WDR Vandalproof AHD
Products Category: > HYBRID CAMERA
· Sensor: CMOS
· Technology: Infrared
· Special Features: Vandal-proof
· Resolution: 1920*1080P
· Image Sensor: AR0238
· DSP: Nextchip WDR-1
· IR Distance: 15Meters
· Certificate: CE/FCC/ROHS/ISO9001
· Camera type: AHD Analog Camera
· TVL: 2100
· Lens: 3.6mm
Product Description

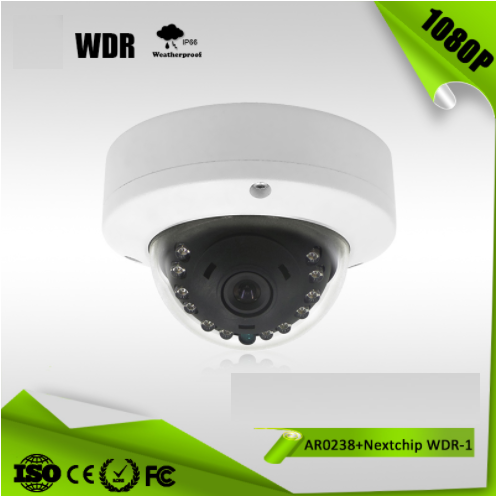

2100TVL 1080P 2MP WDR Vandalproof AHD IR surveillance Camera15m night distance OAHD200W-MDPE15
Model | OAHD200W-MDPE15 |
Main Chipset | Nextchip WDR-1 |
sensor | AR0238 |
Effective Picture Elements (H×V) | PAL/NTSC : 1920*1080 |
Horizontal Resolution | 1920H |
Scanning System | 2:1 interface |
Synchronous System | Internal, Negative sync |
Auto Electronic Shutter | 1/50(1/60)S-1/100,000S |
Gama Characteristic | 0.45 |
IR Distance | 15Meters (with 5X12PCS Infrared LED) |
IR Status | Under 10Lux by CDS |
IR Power On | CDS AUTO Control |
Video Output | 1Vpp, 75Ω |
Auto Gain Control | Auto |
Power/Current | DC12V/2000mA ±10% |
Lens | MTV 3.6mm HD Fixed Lens |
Dimension (mm) | 94 x 62(H) mm |
Storage Temperature | -30~+60℃ RH95% MAX |
Operating Temperature | -10~+60℃ RH95% MAX |
NW | 0.6 KG |
