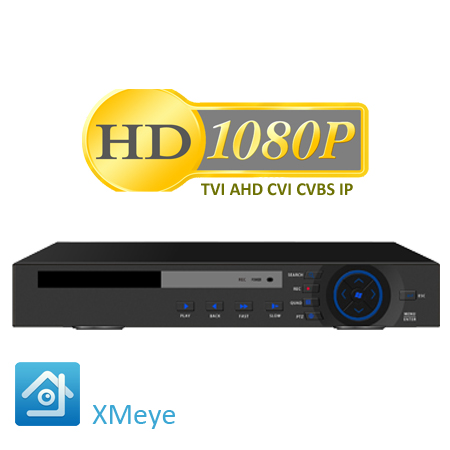

CNT2508

Key Features:
1.Support AHD, CVI,TVI , IP, CVBS series front-end real-time encoding;  5 in 1
2.Support VGA, HDMI  output;
3.Support XMEYE Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate;
4.Support various mobile monitoring:（IOS, Windows Mobile, BlackBerry, Symbian, Android）.
5.Support multiple web browsers（IE、Chrome、Firefox、Safari）；
6.Support more than 20 languages（English、Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.）, no nation boundaries;
7.perfect protection circuit, unique triple watchdog function
8.Supporting web, CMS, center platform management software XMEYE, provide SDK development.

Industrial-grade embedded HiSilicon CPU

embedded Linux

Simultaneously multi-channel real-time recording, playback, network operation, USB backup

Preview: 1/4/8 split screen

H.264（High Profile）/ 12FPS

1*VGA；1*HDMI：HD interface

İnput mode: 8*TVI、CVI / AHD-M（analog, Network only：：16*720P；8*1080P；4*5M

Playback mode: TVI、AHD.CVI-1080N

Motion dedection: Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)

Audio compression: G711A

Audio output :4 RCA

1*10/100Mbps Ethernet,2*USB

1*HDD ( 6TB max.) 2 SATA OPTIONAL

Input voltage: 12V 2A /4A FOR 2 HDD

Weight: 2.2KG/3KG FOR 2HDD
