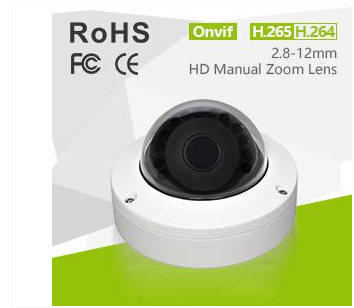

CNT-IP3704
Product name : CNT-IP3704
Model No. : 1.3/2/4MP H265/H264 VARIFOCAL IP CAMERA
Products Category: > IP CAMERA(H265+/H265/H264) > H265 IP CAMERA
Features
Built In POE
Metal Housing, Vandalproof
Compression: H.265/MJPEG/H.264
Compatible with Hikvision Private Protocol
Smart Low Illumination; Smart ROI(4 ROI region)
Free P2P; ONVIF2.4; BLC; 3D-DNR; DEFOG; DWDR
Support: Milestone, NUUO, AXXON, igifort,avigil
Image Sensor | Hi3518EV200 | Hi3518EV200 | Hi3518EV200 | Hi3516CV300 | Hi3516D | Hi3516CV300 | |
Main processor | AR0130C | SC2135 | IMX323 | SONY323 | OV4689 | SONY290 | |
Resolution | 1.3mp | 2.0mp | 2.0mp | 2.0mp | 4.0mp | 2.0mp | |
Day/Night | ICR | ||||||
Min.Illumination | Low LUX: 1.0LUX（Color） 0.1LUX (B&W) | Low LUX: 1.0LUX（Color） /0.1LUX (B&W) | Low LUX: 0.1LUX（Color） /0.01LUX (B&W) | Low LUX: 0.1LUX（Color） /0.01LUX (B&W) | Low LUX: 0.6LUX（Color） /0.08LUX (B&W) | Low LUX: 0.1LUX（Color） /0.01LUX (B&W) | |
Lens | 3.6mm | ||||||
IR LED | ￠5x12pcs | ||||||
IR Distance | 12M | ||||||
White Balance | Manual/Automatic | ||||||
OSD | YES | ||||||
Electronic Shutter | 1/2000 ~ 1/1000 | ||||||
VIDEO | |||||||
Compression | H.264 | H.265/H.264 | |||||
Max Image Resolution | 1280*960 | 1920*1080 | 1920*1080 | 1920*1080 | 4.0MP(2560×1440) | 1920*1080 | |
Frame Rate | 12--25FPS ( Adjustable) | 12--25FPS ( Adjustable) | 9--16FPS ( Adjustable) | 7--30FPS ( Adjustable) | 4MP @20 FPS, 2MP @30FPS, 1~30 FPS adjustable | 7--30FPS ( Adjustable) | |
Bit Rate | 100Kpbs~6Mpbs(Adjustable) | 200Kpbs~5Mpbs(Adjustable) | 200Kpbs~5Mpbs(Adjustable) | 200Kpbs~8000kpbs(Adjustable) | |||
AUDIO(Optiona) | |||||||
NETWORK | |||||||
Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, UDP,RTSP, PPPoE, SMTP, NTP, UPnP, FTP,etc | ||||||
Compliance | ONVIF 2.4 | ||||||
PC Client & Browser | UC2, IE,seetong | ||||||
Mobile Phone | iPhone,iPad,Android Mobile | ||||||
INTERFACE | |||||||
Video Output | RJ45 | ||||||
LAN | 1 RJ45 10/100 ethernet port | ||||||
GENERAL | |||||||
Working Temperature | -10 C ~ + 50 C | ||||||
Working Humidity | 0% ~ 90% | ||||||
Power Supply | DC12V ,1A | ||||||
Dimension | ￠95×63(H)mm | ||||||
Weight | 0.6Kg | ||||||
