CNT-AHD7108

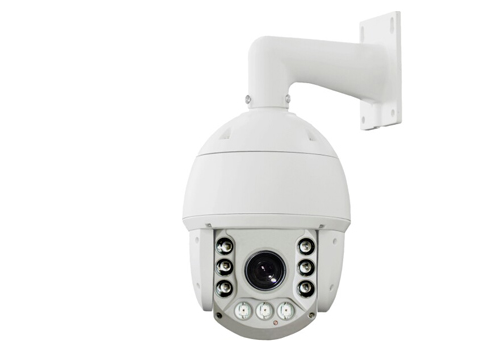

Product Name: HD AHD Outdoor IR High Speed Dome Camera
 Application:
It can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.
 IR Function:
1) 9PCS high-power infrared light, turn divided into two groups , no flashlight effect , IR distance 120-150m.
2) Adopt the function of matching the IR to optical zoom of the module, make the image more clear.
3) Adopt constant current drive for the IR light, extend the lift of the IR light.

System Function:
1) Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree, the image does not have any vibration under any speed.
2) Support Hikvision 3D intelligent positioning function, can realize tracking and zooming out function when work with DVR.
3) Support data not lost when power off.
4) Support graphic menu, operation prompt facility, PTZ position display.
5) Adopt advanced Heating equipment.
6) Support Protocol automatically diagnosis(Pelco-D, Pelco-P, Hikvision, Dahua), Baud rate automatically adjust 2400bps,4800bps,9600bps.
7) Support lightning protection, anti-surge, anti-surge function, IP66.

PTZ Function:

1)  360°endless pan range and -5°- 92°tilt range, support auto-flip, non-surveillance blind area
2)  Pan control speed 0.01° ~ 200°/s, tilt control speed 0.01° ~ 120°/s
3)  Support 128 preset
4)  4 patrols, each patrol can contain up to 16 presets
5)  1 patterns, can totally record up to 10 minus.
6)  With 22X optical zoom.
7)  Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
8)  Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)
9)  Support 2input/1output alarm function ( support alarm linkage, alarm linkage preset, patrol, pattern, auto scan...etc)
