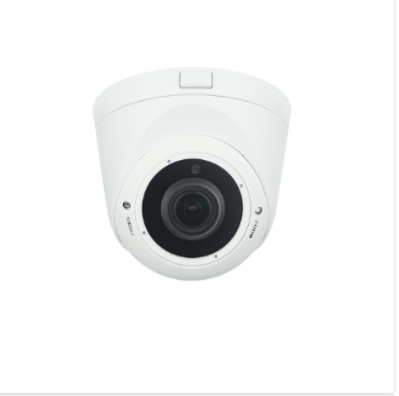

CNT-AHD7105
Product name : CNT-AHD7105
Model No. : 2 MP 4 IN 1 1080P DOME CAMERA
Products Category: > HYBRID CAMERA
◆High resolution 2.0Megpixel AHD TVI CVI CVBS hybred 4 IN 1 camera ◆Higheffective pixels1920(H)1080p(V) ,
◆The transmission distance over 500 meters with 75-3 coaxial cable
◆Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial and distortion ◆ Color waterproof camera, easy installation Type
◆IR LEDs:24PCS; 30m IR night vision distance;
◆ Standard lens: Varifocal 2.8-12mm lens;
◆ Color:White
Package Dimension: 720x340x340mm
Weight/Piece: 0.70kg
QTY: 20pcs/ctn
AHD TVI Camera Image Sensor SONY323 DSP NVP2441H Image Resolution PAL: 25fps@1080P(1920*1080); NTSC: 30fps@1080P(1920*1080) Effective Pixels 1920(H)×1080(V) , 2MP TV System PAL/NTSC Electronic Shutter Internal Sync System Internal Usable Illumination 0.01Lux S/N Ratio ≥50dB Scanning System Progressive Scan Video Output Mode AHD/CVBS (960H) (BNC) Transmission Distance Over 500m via 75-3 coaxial cable Day/Night Auto (ICR) / Color / B&W OSD Menu Language EN, CN, DE, FRA, IT, ES, PL, RU, PT, NL, TR White Balance Auto/Manual Gain Control Auto Noise Reduction 3D NR Picture Adjustment Yes OSD Support Yes Lens Focus Length Varifocal 2.8-12mm lens Focus Control Manual Lens Type Manual Pixels 3M Pixels Auto Iris Support NO Night Vision Infrared LED 24PCS IR LED Infrared Distance 30M IR Status Under 10 Lux by CDS IR Power On CDS Auto Control General Weatherproof Housing YES, IP66 Anti-cut Bracket YES Dual Voltage NO IR Cut Filter YES Heater NO Operation Temperature -10℃ ~ +50℃ RH95% Max Storage Temperature -20℃ ~ +60℃ RH95% Max Power Source DC12V±10%, 400mA Dimension 720x340x340mm Weight 0.70kg
