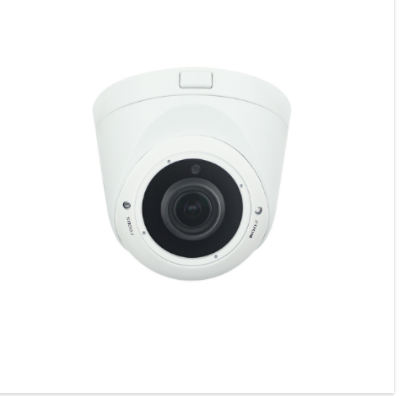

CNT-AHD7100
◆High resolution5.0Megpixel AHD Camera
◆The transmission distance over 500 meters with 75-3 coaxial cable
◆Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial and distortion ◆ Color waterproof camera, easy installation Type
◆IR LEDs:24PCS; 30m IR night vision distance;
◆ Standard lens: Varifocal 2.8-12mm lens;
◆ Color:White
Package Dimension: 720x340x340mm
Weight/Piece: 0.70kg
QTY: 20pcs/ctn
| AHD TVI Camera | |
| Image Sensor | OV5658 |
| DSP | NVP2475 |
| Image Resolution | PAL: 25fps@1080P(1920*1080); NTSC: 30fps@1080P(1920*1080) |
| Effective Pixels | 1920(H)×1080(V) , 2MP |
| TV System | PAL/NTSC |
| Electronic Shutter | Internal |
| Sync System | Internal |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥41dB |
| Scanning System | Progressive Scan |
| Video Output Mode | AHD/TVI (BNC) |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Day/Night | Auto (ICR) / Color / B&W |
| OSD Menu Language | EN, CN, DE, FRA, IT, ES, |
| PL, RU, PT, NL, TR | |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Picture Adjustment | Yes |
| OSD Support | Yes |
| Lens | |
| Focus Length | Varifocal 2.8-12mm lens |
| Focus Control | Manual |
| Lens Type | Manual |
| Pixels | 3M Pixels |
| Auto Iris Support | NO |
| Night Vision | |
| Infrared LED | 24PCS IR LED |
| Infrared Distance | 30M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| General | |
| Weatherproof Housing | YES, IP66 |
| Anti-cut Bracket | YES |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 400mA |
| Dimension | 720x340x340mm |
| Weight | 0.70kg |
