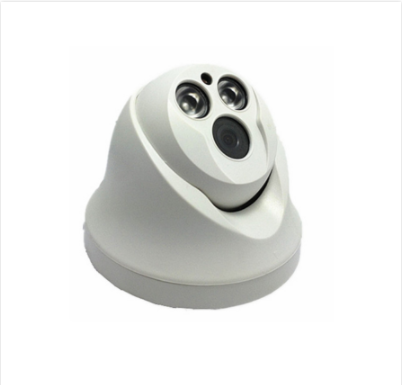

CNT-HYB6104
◆High resolution 2.0Megpixel AHD+CVI+TVI+CVBS Camera 1080p ◆Higheffective pixels1920(H)*1080(V) ,
◆The transmission distance over 500 meters with 75-3 coaxial cable
◆Support IR-CUT dual filter switch, to achieve day and night monitoring, color is not partial and distortion ◆ Color waterproof camera, easy installation Type
◆ IRLEDs:2pcs*array led for 30meter IR night vision distance;
Standard lens: 3.6MMFixed lens, Option lens: 2.8mm, 6mm,12mm
(HAVE BLACK CORNER)
| AHD TVI Camera | |
| Image Sensor | IMX290L |
| DSP | K9ATCC |
| Image Resolution | PAL: 25fps@1080P(1920*1080); NTSC: 30fps@1080P(1920*1080) |
| Effective Pixels | 1920(H)×1080(V) , 2MP |
| TV System | PAL/NTSC |
| Electronic Shutter | Internal |
| Sync System | Internal |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥41dB |
| Scanning System | Progressive Scan |
| Video Output Mode | AHD/CVBS (1080P/960H) (BNC) |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Day/Night | Auto (ICR) / Color / B&W |
| OSD Menu Language | EN, CN, DE, FRA, IT, ES, |
| PL, RU, PT, NL, TR | |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Picture Adjustment | Yes |
| OSD Support | Yes |
| Lens | |
| Focus Length | 3.6MMFixed lens, Option lens: 2.8mm, 6mm,12mm add USD1 1.8MM add USD2 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 3M Pixels |
| Auto Iris Support | NO |
| Night Vision | |
| Infrared LED | 2pcs*array led |
| Infrared Distance | 30M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| General | |
| Weatherproof Housing | YES, IP66 |
| Anti-cut Bracket | YES |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 400mA |
| AHD TVI Camera | |
| Image Sensor | IMX290L |
| DSP | K9ATCC |
| Image Resolution | PAL: 25fps@1080P(1920*1080); NTSC: 30fps@1080P(1920*1080) |
| Effective Pixels | 1920(H)×1080(V) , 2MP |
| TV System | PAL/NTSC |
| Electronic Shutter | Internal |
| Sync System | Internal |
| Usable Illumination | 0.01Lux |
| S/N Ratio | ≥41dB |
| Scanning System | Progressive Scan |
| Video Output Mode | AHD/CVBS (1080P/960H) (BNC) |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Day/Night | Auto (ICR) / Color / B&W |
| OSD Menu Language | EN, CN, DE, FRA, IT, ES, |
| PL, RU, PT, NL, TR | |
| White Balance | Auto/Manual |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Picture Adjustment | Yes |
| OSD Support | Yes |
| Lens | |
| Focus Length | 3.6MMFixed lens, Option lens: 2.8mm, 6mm,12mm add USD1 1.8MM add USD2 |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 3M Pixels |
| Auto Iris Support | NO |
| Night Vision | |
| Infrared LED | 2pcs*array led |
| Infrared Distance | 30M |
| IR Status | Under 10 Lux by CDS |
| IR Power On | CDS Auto Control |
| General | |
| Weatherproof Housing | YES, IP66 |
| Anti-cut Bracket | YES |
| Dual Voltage | NO |
| IR Cut Filter | YES |
| Heater | NO |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 400mA |
